半导体组件
工业级陶瓷平板型多级半导体致冷组件
| 型 号 |
最大 电流 （A） |
TH＝25℃ |
外形尺寸（mm） |
||||||
|
最大温差 （℃） |
最大电压 （V） |
最大产冷功率（W） | L1 | W | L2 | H | |||
 一级微型 |
TES1-0801 | 1.5 | 65 | 0.87 | 0.81 | 4.0 | 4.0 | 6.2 | 2.4 |
| TES1-1201 | 1.5 | 65 | 1.45 | 1.21 | 6.2 | 6.2 | 4.2 | 2.4 | |
| TES1-1701 | 1.5 | 65 | 2.0 | 1.4 | 6.2 | 6.2 | 2.4 | ||
| TES1-1801 | 1.5 | 65 | 2.18 | 1.82 | 7.0 | 7.0 | 8.3 | 2.4 | |
| TES1-3101 | 1.2 | 65 | 3.75 | 2.51 | 8.3 | 8.3 | 2.4 | ||
 一级 |
TEC1-1704 | 4.0 | 67 | 2.06 | 4.5 | 15.0 | 15.0 | 4.7 | |
| TEC1-1705 | 5.0 | 67 | 2.06 | 5.7 | 15.0 | 15.0 | 3.9 | ||
| TEC1-3103 | 3.0 | 67 | 3.75 | 6.3 | 15.0 | 15.0 | 3.5 | ||
| TEC1-3104 | 3.9 | 67 | 3.75 | 8.2 | 15.0 | 15.0 | 3.2 | ||
| TEC1-3104 | 4.0 | 67 | 3.75 | 8.2 | 20.0 | 20.0 | 4.2 | ||
| TEC1-3105 | 5.0 | 67 | 3.75 | 10.5 | 20.0 | 20.0 | 4.0 | ||
| TEC1-3106 | 6.0 | 67 | 3.75 | 12.5 | 20.0 | 20.0 | 3.8 | ||
| TEC1-3108 | 8.5 | 67 | 3.75 | 16.8 | 20.0 | 20.0 | 3.3 | ||
| TEC1-4903 | 3.3 | 67 | 5.6 | 11.3 | 25.0 | 25.0 | 4.2 | ||
| TEC1-4905 | 4.6 | 67 | 5.8 | 15.8 | 25.0 | 25.0 | 4.1 | ||
| TEC1-4908 | 8.0 | 67 | 3.75 | 27.4 | 50.0 | 50.0 | 7.8 | ||
| TEC1-7102 | 2.5 | 67 | 8.6 | 12.0 | 23.0 | 23.0 | 4.0 | ||
| TEC1-7103 | 3.0 | 67 | 8.6 | 14.4 | 23.0 | 23.0 | 3.5 | ||
| TEC1-7104 | 3.9 | 67 | 8.6 | 18.7 | 23.0 | 23.0 | 3.2 | ||
| TEC1-7104 | 4.0 | 67 | 8.6 | 19.7 | 30.0 | 30.0 | 4.7 | ||
| TEC1-7105 | 5.0 | 67 | 8.6 | 23.9 | 30.0 | 30.0 | 4.0 | ||
| TEC1-12703 | 3.0 | 67 | 15.4 | 25.7 | 30.0 | 30.0 | 3.5 | ||
| TEC1-12704 | 4.0 | 67 | 15.4 | 33.4 | 40.0 | 40.0 | 4.5 | ||
| TEC1-12705 | 5.0 | 67 | 15.4 | 42.8 | 40.0 | 40.0 | 4.2 | ||
| TEC1-12706 | 6.0 | 67 | 15.4 | 51.4 | 40.0 | 40.0 | 3.9 | ||
| TEC1-12708 | 8.5 | 67 | 15.4 | 72.0 | 40.0 | 40.0 | 3.3 | ||
| TEC1-12709 | 9.0 | 67 | 15.4 | 80.0 | 62.0 | 62.0 | 5.6 | ||
| TEC1-12710 | 10.0 | 67 | 15.4 | 80.0 | 50.0 | 50.0 | 4.5 | ||
| TEC1-12712 | 12.0 | 67 | 15.4 | 100.0 | 50.0 | 50.0 | 3.8 | ||
| TEC1-12714 | 14.0 | 67 | 15.4 | 120.0 | 62.0 | 62.0 | 4.6 | ||
| TEC1-12719 | 18.1 | 67 | 16.1 | 178.0 | 50.0 | 50.0 | 3.6 | ||
 二、三、四级 |
TEC2-4903 (31+17) |
3.0 | 75 | 3.8 | 3.0 | 15.0 | 15.0 | 6.5 | |
|
TEC2-5816 (49+9) |
16.0 | 75 | 4.5 | 10.0 | 50.0 | 50.0 | 17.5 | ||
|
TEC2-19104 (127+63) |
4.0 | 75 | 15.4 | 17.5 | 30.0 | 30.0 | 7.0 | ||
|
TEC2-25506 (127+127) |
6.0 | 75 | 15.4 | 54.0 | 40.0 | 40.0 | 6.6 | ||
|
TEC3-22904 (127+71+31) |
4.0 | 85 | 15.4 | 8.5 | 40.0 | 40.0 | 10.1 | ||
|
TEC3-29906 (127+71+31) |
6.0 | 85 | 15.4 | 13.0 | 62.0 | 62.0 | 13.5 | ||
|
TEC4-24708 (127+71+31+17) |
8.0 | 90 | 15.4 | 9.5 | 62.0 | 62.0 | 17.0 | ||
|
以上普通型产品建议最高工作及储存温度<80℃，可定制高温型产品，最高工作温度<200℃。 如有特殊要求，产品均可定制。 |
|||||||||

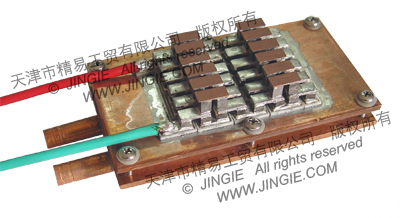

工业级大功率水冷型多级半导体致冷组件
| 型 号 | 最大电流（A） | TH=25℃ |
外形尺寸（mm） （含水道） |
|||
|
最大 温差 （℃） |
最大 电压 （V） |
最大 产冷功率 （W） |
||||
 一、二、三级 |
BZT1-4425 | 25 | 67 | 4.9 | 77 | 80×58×23 |
| BZT1-8825 | 25 | 67 | 9.0 | 154 | 130×74×23 | |
| BZT1-13225 | 25 | 67 | 13.5 | 231 | 170×74×23 | |
| BZT2-2829 | 29 | 70 | 2.2 | 21 | 56×56×30 | |
| BZT2-11225 | 25 | 75 | 12.0 | 42 | 130×74×35 | |
| BZT2-16825 | 25 | 75 | 17.0 | 63 | 170×74×35 | |
| BZT2-18025 | 25 | 75 | 18.0 | 84 | 170×74×35 | |
| BZT3-6225 | 25 | 90 | 5.5 | 11 | 80×60×40 | |
| BZT3-12425 | 25 | 87 | 11.0 | 21 | 130×74×40 | |
| BZT3-17725 | 25 | 90 | 15.5 | 27 | 170×74×40 | |
|
以上普通型产品建议最高工作及储存温度<80℃。 如有特殊要求，产品均可定制。 |
||||||
